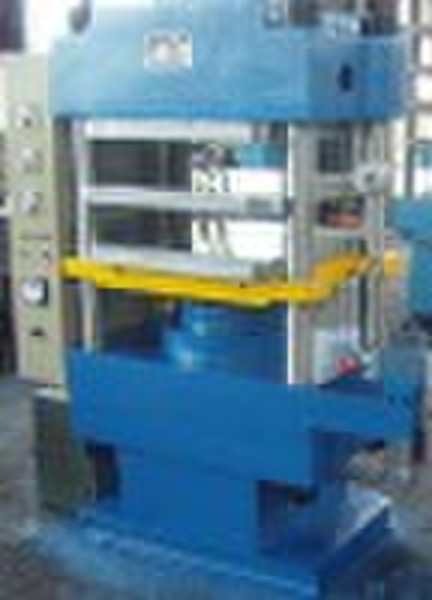

Platen Vulcanizing Press

one. Main technical specifications of 100T vulcanizing press 1.Nominal die pressure F=1MN 2.Specification of hot plates S=600mm×600mm 3.Unit area pressure of hot plates P=2.78MPa 4.Structure format Four-post frame, second floor (Frame) 5.The distance between layers H=150mm 6.Plunger diameter 280mm 7.Max course of plunger L=300mm 8.Rated oil working pressure P=16Pma 9.Highest temperature of hot plates 170°C (Steam heating) 200°C(Electric heating) 10.Total power of electric heating N=16.2KW 11.Motor Power N=1.5+1.5=3KW 12.Dimension L×B×H:1500×800×1900 plate vulcanizer is used for all kinds of vulcanizing mould, rubber and plastic mould products, and non-mould products. plate vulcanizer, including following type:1) column type plate vulcanizer2)H-type plate vulcanizer3)plate vulcanizer with auto push-out mould4)plate vulcanizer with forced opening mould &automatic push and draw moulds5)tyre tread plate vulcanizer6)plate vulcanizer with big plate size and high pressure7)jaw-type plate vulcanizer8)foamed plate vulcanizer for EVA and PVC and rubber sheet9)down stroke plate vulcanizer10)electrothermal rubber belt splicing vulcanizer11)full automatic plate vulcanizer12)vacuum vulcanizerplate vulcanizer is used for all kinds of vulcanizing mould, rubber and plastic mould products, and non-mould products. And we can design and produce standard and non-standard products as per your requirments.
